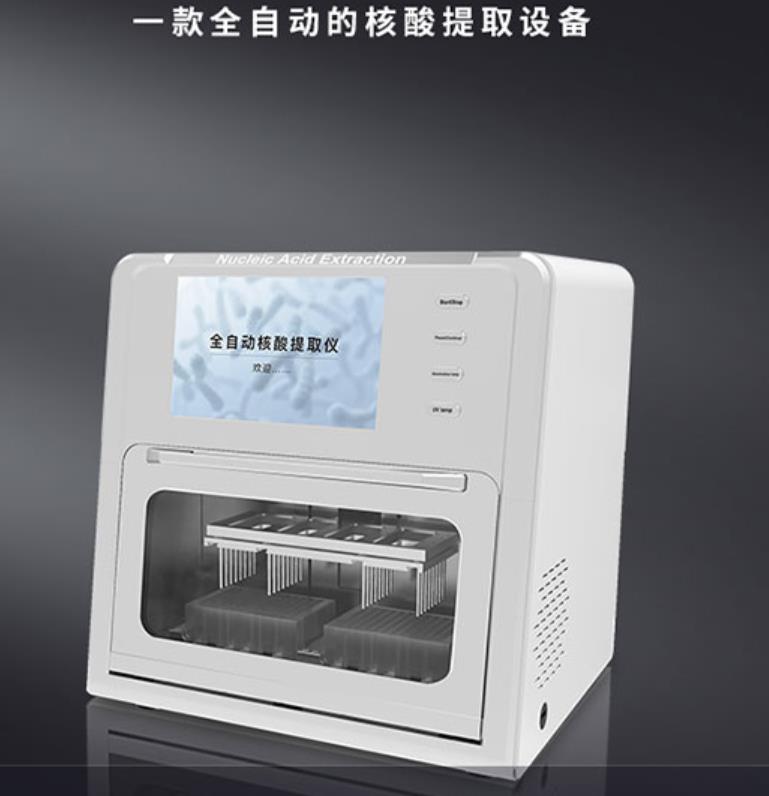

NAE-32 全自動核酸提取儀
NAE-32 Automatic nucleic acid extractor
本產品是一款全自動的核酸提取設備，依靠精密的傳動機構以及精密的控制器完成核酸純化工藝中的磁性分離工藝。
本產品可供分子生物實驗室和臨床實驗室等部門用于分離、純化核酸。
This product is a fully automatic nucleic acid extraction equipment, which relies on a precise transmission mechanism and an intelligent and efficient controller to complete the magnetic separation process in the nucleic acid purification process.
This product can be used for separation and purification of nucleic acids in molecular biology laboratories and clinical laboratories.
本產品具有以下特點：
1. 整機運行噪音低，工作區全封閉。
2. 快速提取，操作時間短，15~30分鐘/次，一次可同時提取32份樣品。
3. 溫度控制精準獨立，根據需求自定義裂解、洗脫溫度，通過提高導熱效率及受熱部位溫度均一性，使溫度控制更加準確。
4. 強大的程序編程功能，靈活、高效的定義應用，可滿足不同試劑要求。
5. 防污染設計，全封閉式設計，內置UV滅菌功能，確保實驗室生物安全。
6. 高精度，高得率，根據試劑優化提純方案，配合溫育，實現更高的提取效率，提取的DNA/RNA可直接用于PCR/RT-PCR實驗。
7. 具有斷電保護功能，意外斷電之后開機可選擇是否繼續運行程序。
8. 內置LED照明功能，可以方便觀察運行中的儀器狀況。
9. 前門在運行的時候可隨時打開，方便隨時觀察試劑狀態以及優化試劑提取方案。
10. 10英寸高清彩色觸摸屏，智能化操作，方便用戶運行與編輯程序；另外，配備了4個實體按鍵，可實現一鍵運行程序，暫停程序，打開照明燈，打開紫外燈，極大的方便了用戶操作。
11. 具有用戶管理系統，每個用戶可以單獨管理自己的提純程序，防止不同用戶之間的交叉操作。
12. 可以根據需要編輯多個運行程序，儀器具備大存儲空間，可存儲程序大于5000個。
13. 試劑開放，可應對市面各類磁珠法核酸純化試劑盒。
14. 整機穩定可靠，可持續不停機運行24小時以上。
15. 電機均帶有反饋，可防止夾手，機械出現碰撞會立刻停止運行，并及時上報錯誤，能夠有效保護機械結構。
16. 帶有排風扇，可以加快磁珠的晾干，縮短提取時間。
17. 儀器內置開發者模式，用于試劑研發公司更加方便的調試，以及適配機器。
1. The whole machine has low operating noise and the working area is fully enclosed.
2. Fast extraction, short operation time, 15~30 minutes/time, 32 samples can be extracted at one time.
3. The temperature control is precise and independent, and the pyrolysis and elution temperature can be customized according to the needs. By improving the thermal conductivity and the temperature uniformity of the heated part, the temperature control is more accurate.
4. Powerful program programming function, flexible and efficient definition of application, can meet the requirements of different reagents.
5. Anti-pollution design, fully enclosed design, built-in UV sterilization function to ensure laboratory biological safety.
6. High precision, high yield, according to the reagent optimization purification plan, with incubation, to achieve higher extraction efficiency, the extracted DNA/RNA can be directly used in PCR/RT-PCR experiments.
7. With power-off protection function, you can choose whether to continue running the program after an accidental power-off.
8. Built-in LED lighting function, you can easily observe the condition of the running instrument.
9. The front door can be opened at any time during operation, which is convenient for observing the status of reagents and optimizing the reagent extraction scheme at any time.
10.10-inch high-definition color touch screen, intelligent operation, convenient for users to run and edit programs; in addition, equipped with 4 physical buttons, which can realize one-key operation of programs, pause programs, turn on lights, and turn on UV lights, which greatly facilitates users operating.
11. With a user management system, each user can individually manage their own purification procedures to prevent cross operations between different users.
12. You can edit multiple running programs as needed. The instrument has a large storage space and can store more than 5000 programs.
13. The reagents are open, which can cope with all kinds of magnetic bead method nucleic acid purification kits on the market.
14. The whole machine is stable and reliable, and can run continuously for more than 24 hours without stopping.
15. The motors are equipped with feedback, which can prevent the hand from being clamped, and the machine will stop running immediately in case of collision, and report errors in time, which can effectively protect the mechanical structure.
16. With exhaust fan, it can speed up the drying of the magnetic beads and shorten the extraction time.
17.The instrument has a built-in developer mode, which is used for more convenient debugging of reagent R&D companies and adapting to the machine.
型號 | NAE-32 |
處理體積 | 50ul~1000ul |
樣品通量 | 1~32 |
磁珠回收效率 | >98% |
提純孔間差 | CV<5% |
板類型 | 96孔深孔板 |
磁棒 | 固定32個 |
加熱溫度 | 裂解/洗脫溫度:室溫~120℃ |
振蕩混合 | 多模式多檔可調 |
磁珠大小 | ≥100nm |
內部程序 | 可存儲>5000組程序 |
紫外燈 | 有 |
照明燈 | 有 |
排風扇 | 有 |
操作時間 | 15~30分鐘/次 |
功率 | 500W |
電源適配器 | 100-120V~/7.6A 200-240V~/4.4A 50/60Hz |
熔斷器 | 100-120V~/10A 200-240V~/6A |
外形尺寸 | W.386 x D.439 x H.447mm |
凈重 | 36kg |
備注：可定做配套模塊，適應不同的深孔板
Model | NAE-32 |
Processing volume | 50ul~1000ul |
Sample throughput | 1~32 |
Magnetic bead recovery efficiency | >98% |
Difference between purification holes. | CV<5% |
Board type | 96-well deep well plate |
Magnetic bar | 32 fixed |
Heating temperature | Lysis/elution temperature: R.T. ~120℃ |
Shaking mixing | Multi-mode and multi-gear adjustable |
Magnetic bead size | ≥100nm |
Internal procedures | Can store >5000 groups of programs |
UV lamp | Yes |
Lamp for lighting | Yes |
exhaust fan | Yes |
Operating time | 15~30 Minute/time |
power | 500W |
Power | 100-120V~/7.6A 200-240V~/4.4A 50/60Hz |
Fuse | 100-120V~/10A 200-240V~/6A |
Dimensions | W.386 x D.439 x H.447mm |
Net weight | 36kg |
Remarks: The matching block can be customized to adapt to different deep hole plates
